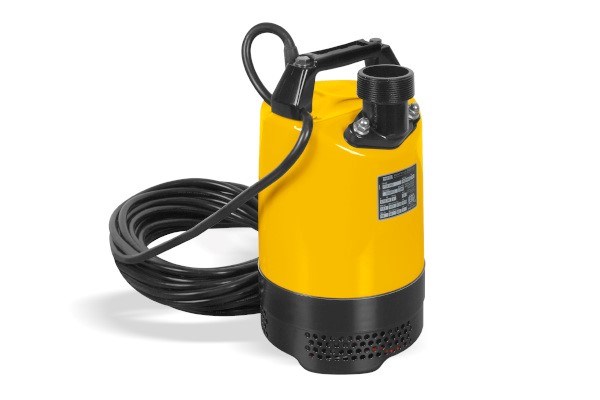

Wacker Neuson PS2 500 (220V)

New Equipment / Wacker Neuson / Pumps / Submersible Pumps / PS Series / PS2 500 (220V)

Double tap to zoom

Lightweight, compact design

Lightweight, compact design

Built-in thermal protection prevents motor damage

Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
Motor protection eliminates worry during operation.

Durable mechanical seals

Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

MORE FEATURES

QUALITY

Heavy-duty strain relief power cord

Model Variations	PS2 500
Cable definition
Nominal current	3 A
Temperature limit borrowed liquid
Cable cross-section
Intake-/Pressure socket-dia.
Nominal voltage	220 V 220 V
Flow rate max.	62.3 gal/mi 236 l/min
Solid diameter max.	0.2 " 6 mm
Delivery height max.	39.4 Foot 12 m
Length	7.3 " 186 mm
Width	7.3 " 186 mm
Height	12 " 304 mm
Operating weight	20.9 lb 9.5 kg
Effective power	0.48 KW 0.48 KW
Nominal frequency	60 Hz 60 Hz
Nominal Engine speed	3,270 1/min 3,270 1/min
Length Cable	32.8 Foot 10 m
Length for shipping	13.7 " 349 mm
Width for shipping	9.8 " 248 mm
Height for shipping	9 " 229 mm
Shipping weight	28 lb 12.7 kg
