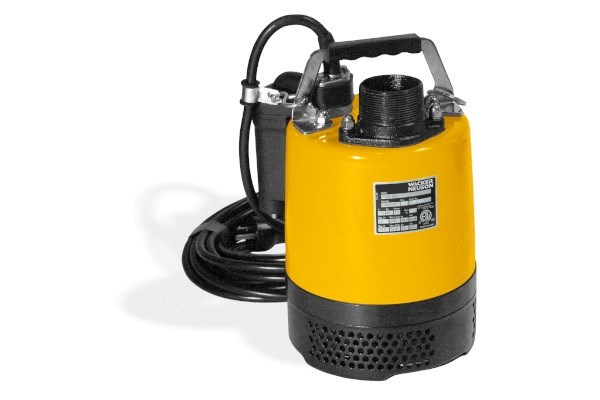

Wacker Neuson PSA2 500

Double tap to zoom

Lightweight, compact design

Built-in thermal protection prevents motor damage

Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
Motor protection eliminates worry during operation.

Durable mechanical seals

Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

MORE FEATURES

QUALITY

Heavy-duty strain relief power cord

Model Variations	PSA2 500
Cable definition
Intake-/Pressure socket-dia.
Temperature limit borrowed liquid
Cable cross-section
Flow rate max.	62.3 gal/mi 236 l/min
Solid diameter max.	0.2 " 6 mm
Delivery height max.	39.4 Foot 12 m
Length	8.7 " 222 mm
Width	7.3 " 186 mm
Height	12 " 304 mm
Operating weight	22 lb 10 kg
Effective power	0.48 KW 0.48 KW
Nominal current	6.1 A 6.1 A
Nominal voltage	110 V 110 V
Nominal frequency	60 Hz 60 Hz
Nominal Engine speed	3,270 1/min 3,270 1/min
Length Cable	32.8 Foot 10 m
Length for shipping	14.3 " 362 mm
Width for shipping	10.2 " 260 mm
Height for shipping	9 " 229 mm
Shipping weight	30 lb 13.6 kg
