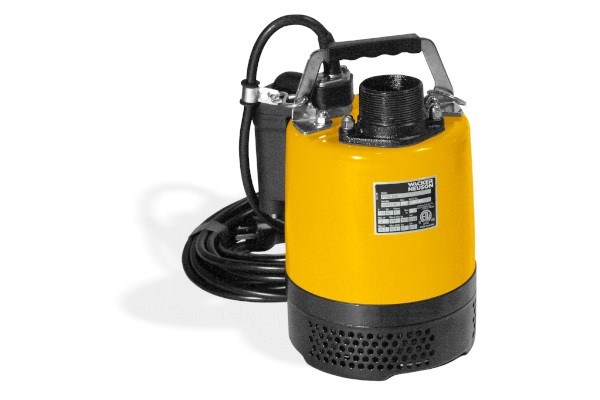

Wacker Neuson PSA2 800

Double tap to zoom

Lightweight, compact design

Built-in thermal protection prevents motor damage

Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
Motor protection eliminates worry during operation.

Durable mechanical seals

Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

MORE FEATURES

QUALITY

Heavy-duty strain relief power cord

Model Variations	PSA2 800
Cable definition	PVC Sheath
Intake-/Pressure socket-dia.	2 " 50 mm
Temperature limit borrowed liquid	104 - 32 °F 40 °C
Cable cross-section	0 Inch2 2 mm2
Flow rate max.	81.9 gal/mi 310 l/min
Solid diameter max.	0.2 " 6 mm
Delivery height max.	59.1 Foot 18 m
Length	7.6 " 192 mm
Width	8.8 " 223 mm
Height	13.4 " 341 mm
Operating weight	30.4 lb 13.8 kg
Effective power	0.75 KW 0.75 KW
Nominal current	5.3 A 5.3 A
Nominal voltage	220 V 220 V
Nominal frequency	60 Hz 60 Hz
Nominal Engine speed	3,300 1/min 3,300 1/min
Length Cable	49.2 Foot 15 m
Length for shipping	18.7 " 475 mm
Width for shipping	10.5 " 267 mm
Height for shipping	10.2 " 260 mm
Shipping weight	37.4 lb 17 kg
