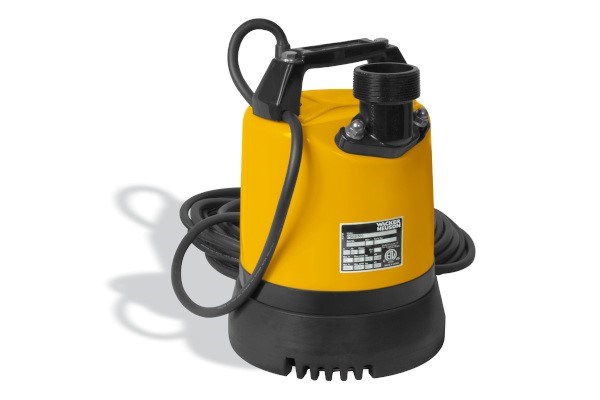

Wacker Neuson PSG2 500

Double tap to zoom

Lightweight, compact design

Built-in thermal protection prevents motor damage

Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
Motor protection eliminates worry during operation.

Durable mechanical seals

Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

MORE FEATURES

Quality

Heavy-duty strain relief power cord

Model Variations	PSG2 500
Phase
Flow rate max.	63.4 gal/mi 240 l/min
Solid diameter max.	0.2 " 6 mm
Delivery height max.	39.4 Foot 12 m
Length	8.3 " 210 mm
Width	8.3 " 210 mm
Height	11.2 " 285 mm
Operating weight	23.1 lb 10.5 kg
Intake-/Pressure socket-dia.	0.48 KW 0.48 KW
Effective power	6.1 A 6.1 A
Nominal current	110 V 110 V
Nominal voltage	60 Hz 60 Hz
Nominal frequency	3,255 1/min 3,255 1/min
Nominal Engine speed	32.8 Foot 10 m
Length Cable
Cable cross-section
Cable definition
Temperature limit borrowed liquid
Length for shipping	18.7 " 475 mm
Width for shipping	10.5 " 267 mm
Height for shipping	10.2 " 260 mm
Shipping weight	37.4 lb 17 kg
