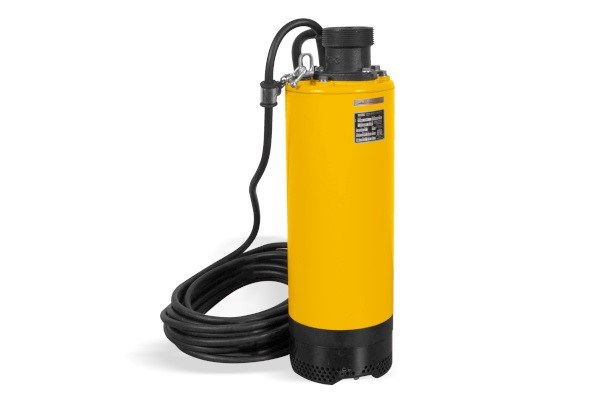

Wacker Neuson PSW3 1500

Double tap to zoom

Compact, lightweight design

Compact, lightweight design using high strength aluminum housing with easy access and large fill and drain plugs, provides extra years of trouble-free operation

Built-in thermal protection prevents motor damage

Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
Motor protection eliminates worry during operation.

Durable mechanical seals

Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

Heavy-duty strain relief power cord

Model Variations	PSW3 1500
Flow rate max.	111 gal/mi
Solid diameter max.	0.2 "
Delivery height max.	68.9 Foot
Length	7.4 "
Width	7.4 "
Height	23.3 "
Operating weight	71.7 lb
Intake-/Pressure socket-dia.	3.1 "
Effective power	1.5 KW
Nominal current	27.1 A
Nominal voltage	110 V
Nominal frequency	60 Hz
Nominal Engine speed	3,480 1/min
Length Cable	49.2 Foot
Cable cross-section	0 in²
Cable definition	PVC Sheath
Temperature limit borrowed liquid	104 - 32 °F 40 °C
Length for shipping	26 " 660 mm
Width for shipping	11 "
Height for shipping	13.2 "
Shipping weight	88.4 lb

PSW3 1500
