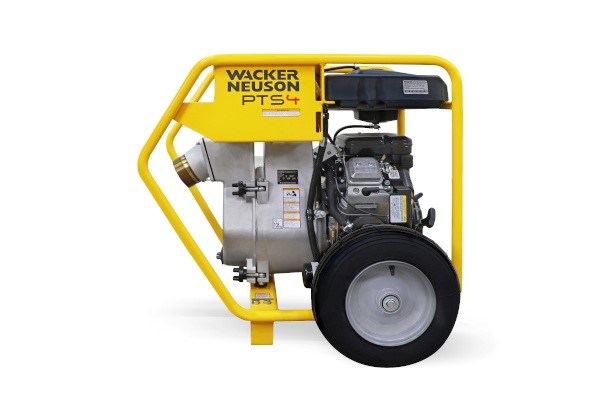

Wacker Neuson PTS4V

Double tap to zoom

Easy transport

The standard integrated wheel set with large wheels enables easy handling on the construction site.

Vanguard gasoline engine

The pump is equipped with a sturdy, durable Vanguard engine with electric starter.
The engine is easy to start and provides reliable power.

Sturdy and durable

The impeller, made of surface-hardened ductile iron as well as the mechanical seals, made of carbon-ceramic in the oil basin guarantee a high level of wear resistance and long operational duration with low maintenance costs.
The aluminum parts are protected against corrosion due to a special surface treatment.

Model Variations	PTS4V
Engine	Briggs, 16 PS Vanguard
Flow rate max.	689.2 gal/mi 2,609 l/min
Pump pressure max.	45 psi 3.1 bar
Solid diameter max.	2 " 50 mm
Suction head max.	24.9 Foot 7.6 m
Delivery height max.	105 Foot 32 m
Length	36 " 915 mm
Width	35 " 890 mm
Height	35 " 890 mm
Operating weight	330.7 lb 150 kg
Intake-/Pressure socket-dia.	3.9 " 100 mm
Tank capacity	4.6 gal US 17.4 l
Starter Voltage	12 V 12 V
Battery Cold-start current CCA	230 A 230 A
Battery Start current CA	32 A 32 A
Battery Size BCI Group	22 NF
Engine speed 1	3,600 1/min 3,600 1/min
Fuel consumption at Engine speed 1	1.4 GPH US 5.4 L/hr
Run Time at Speed 1	3.2 hrs 3.2 hrs
Length for shipping	45.3 " 1,150 mm
Width for shipping	29.5 " 750 mm
Height for shipping	70.9 " 1,800 mm

PTS4V
