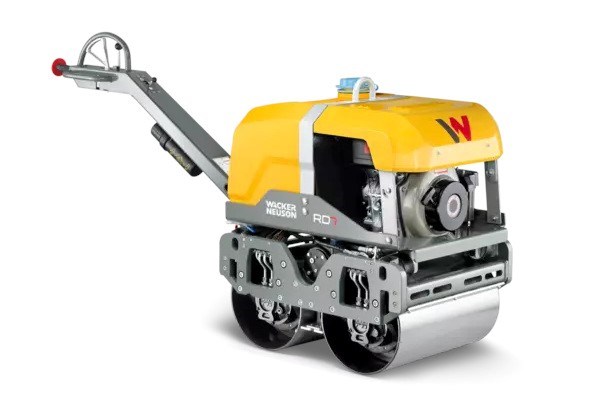

Wacker Neuson RD7Afb HRC

Double tap to zoom

Patent-pending handle design offers multiple gripping points for easier control and turning of the unit, plus a center handle allows the operator fine control finishing asphalt
Open frame design provides for fast cleaning with a pressure washer and easy to access components simplifies service significantly reducing downtime between uses
Large water tank with easy access cap and quick view of water level provide for longer running time between refills
Unique foot operated handle lock allows for easy tilting of the handle for storage
Easy to reach throttle and low/high exciter force controls conveniently located on the shock mounted low vibration handle increases operator comfort

Model	RD7Afb HRC
Engine	Honda GX390UT2X-SX-Q4-OH
Area capacity	31,161.8 ft²/h
Gradeability	26 %
Gradeability max. (without vibration)	33 %
Operating spedeed (km/h)	4.3 km/h
Linear force dynamic front	439.4 000014
Linear force dynamic rear	439.4 000014
Total Linear Force/Drum (front)	574.3 000014
Total Linear Force/Drum (rear)	574.3 000014
Travel Sped	2.8 m/H
Centrifugal force Level I	3,034.9 lbf
Centrifugal force Level II	5,058.2 lbf
Linear force static (front)	134.9 000014
Exciter Type	Hydraulic
Travel speed (reverse)	1.6 m/H
Width	28.3"
Thickness Drum Sheet	0.4"
Operating weight	1,512.2 lb
Dry Weight	1,455.1 lb
Drum diameter	15.7"
Side clearance left	8.9"
Side clearance right	8.9"
Curb clearance right	13.8"
Curb clearance left	13.8
Drum width	25.6"
Wheelbase	19.7
Weight Drum (static) Front	310.9 lb
Weight Drum (static) Rear	310.9 lb
Tank capacity	0.8 gal US
Water tank capacity	15.9 gal US
Exciter oil type	ISO VG 220
Hydraulic fluid volume	5.3 qt US
Hydraulic fluid type	ISO VG 46
Lubricant type for non-drive side bearing	KP2P-3 (DIN 51502)
HAV summation (average value)	8.2 ft/s²
Brake	Surge brake
